Calibrated For 280fps - 440fps
We didn't invent crossbow scopes... We perfected them.
Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Illumination
- 1⁄2 MOA low-profile fingertip turrets
- Fixed parallax at 45 metres
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- Suitable speeds 280fps - 440fps
Nitrogen purged. Shockproof. Waterproof. Fog proof.
Hawke No-Fault Lifetime Warranty.

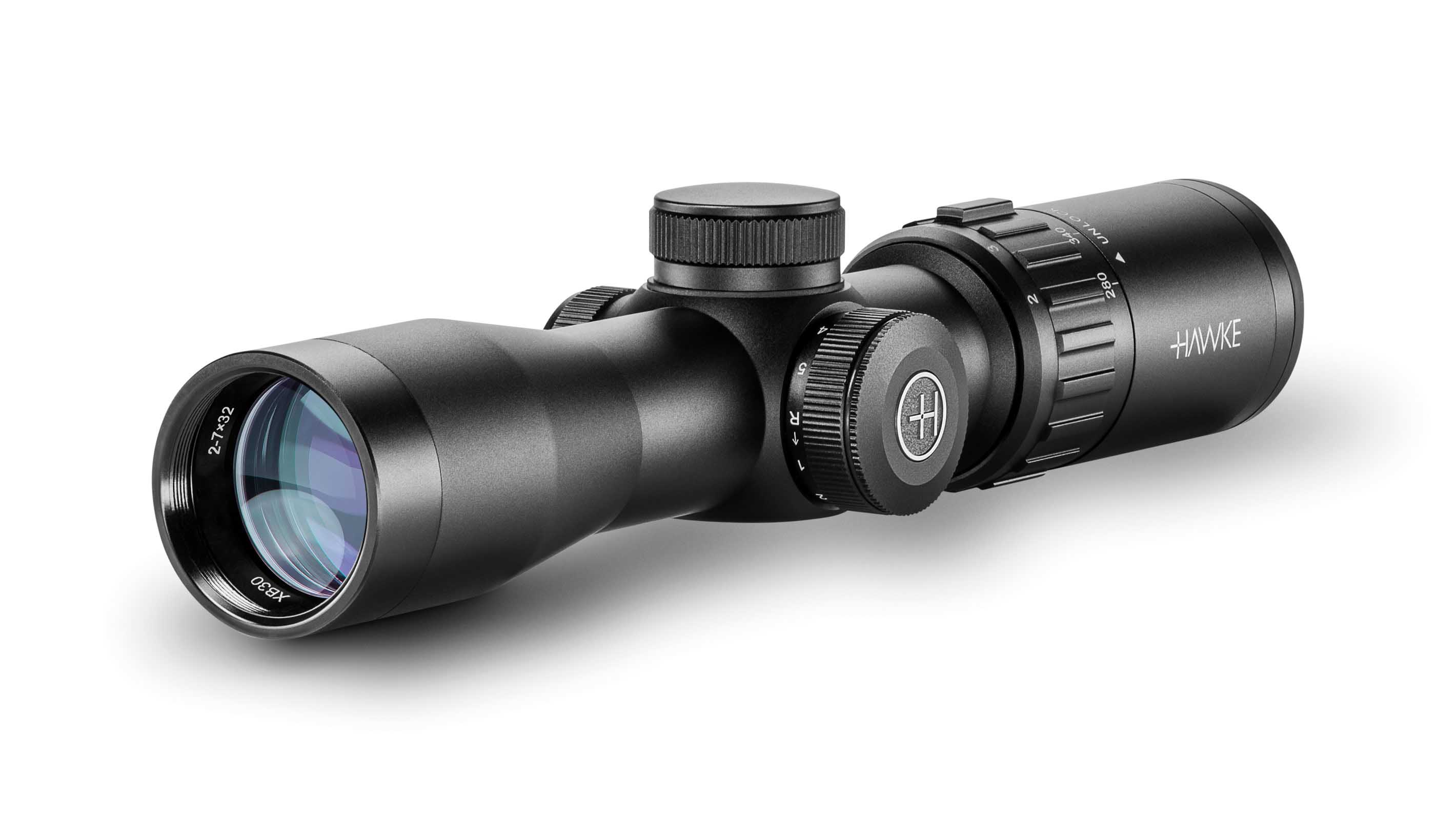

Product Type
Crossbow Scope
Product Range
XB30
Optical System
System H2
Scope Tube
30mm
Magnification
2 - 7x
Objective Lens
32mm
Calibration (Speed)
280fps - 440fps
Reticle
XB30 SR
Illumination
5 Levels - Red/Green
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Lens Coating
Fully Multi-Coated
Field of View (ft@100yds)
53.8 - 17.4
Field of View (m@100m)
17.9 - 5.8
Field of View (°)
10.2 - 3.3
Eye Relief (in)
4
Eye Relief (mm)
102
PX/Focus (yds)
50
PX/Focus (m)
46
Exit Pupil (mm)
16 - 4.6
Exit Pupil (in)
0.63 - 0.18
Turret Type
Capped
Turret Caps
YES
Click Value
1/2 MOA
Elevation Turret Clicks (max)
215 MOA
Windage Turret Clicks (max)
195 MOA
Ocular Type
Fast Focus
Power Selector
Locking Speed Adjuster
Length (in)
9.4
Length (mm)
239
Weight (oz)
14.4
Weight (g)
407
