IT’S NOT THE FINAL FRONTIER…
Frontier RiflescopeFrontier Riflescope

ACCESSORIES

Threaded objective designed to accommodate supplied sunshade.

21 LAYER FULLY MULTI-COATINGS

Each lens layer is multi-coated throughout the optical system with microscopic layers of magnesium fluoride and other chemical layers. The coating is included on all internal lenses guaranteeing sharpness, clarity, reduced are and high light transmission.

ANTI-REFLECTIVE TUBE

Controlled internal light, by means of an anti-reflective surface ensures the brightest image with no ‘whiting-out’ or stray light reaching the eye.

SCOPE TUBE FINISH

Hard wearing, anti-scratch, matte black anodising. All component parts are colour matched.

CONSTRUCTION

30mm mono-tube Computer Numerical Control (CNC) machined out of a solid billet of aluminium. High grade alloys used for strength and low weight. All component parts precision engineered to exacting tolerances.

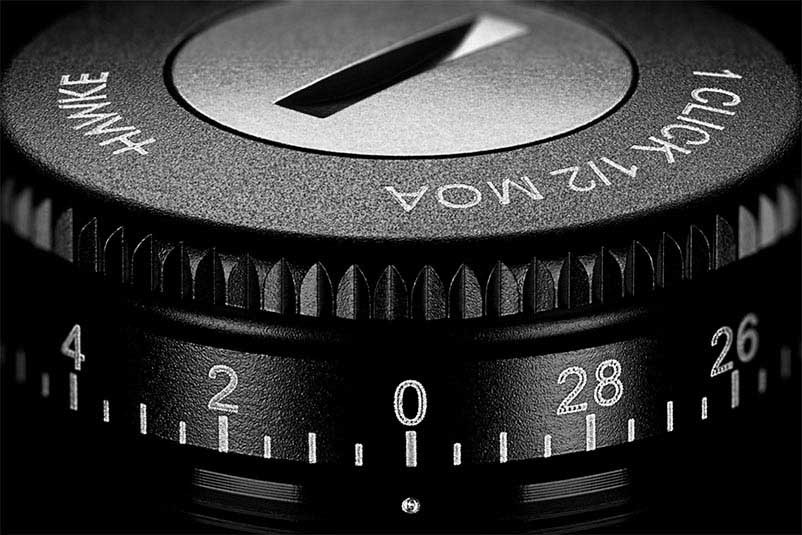

TURRETS

Matched for feel and click sound, hard wearing Minute Of Angle (MOA) turrets offer finer adjustment for exact precision with positive tracking and repeatable clicks. A low profile fingertip design, with no tools required to zero, is protected by a fine knurled dust cap

SIDE FOCUS PARALLAX

Parallax free in focus shooting from:
10yds (2.5-15x) & 30yds (5-30x).

Reduced parallax error at all ranges for increased on-target accuracy.

HOLDING A ZERO

Beryllium leaf spring, which will not relax or flatten with use, holds the erector tube rail ensuring reticle remains zeroed and the point of impact remains stable at all times.

LENSES

Designed exclusively for the 6x ratio optical system, all lenses are precision ground to exacting specifications before being fully multi-coated. Only grade A lenses are index matched to each other, improving the optical characteristics.

ZOOM

Integrated soft contact rubber zoom with smooth and precise operation. Magnification markings precisely calibrated.

RETICLE GIMBAL

Patented ‘No Zero Shift’ anti-recoil gimbal system designed to cushion heavy recoil of magnum calibres.

…BUT IT IS THE LAST ONE YOU’LL NEED.
  • Learn More

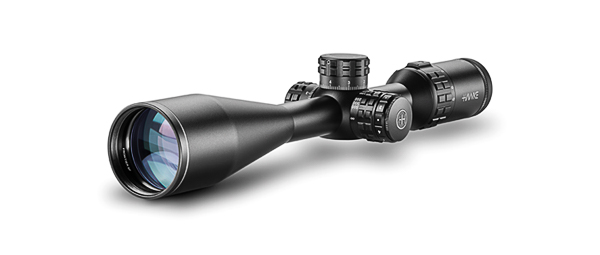

    Our flagship riflescopes feature a 6× ratio second focal plane optical system or a 5× ratio first focal plane optical system, designed to give shooters ultimate flexibility in the field.The index matched lenses set the Frontier apart from its rivals.

    Exceptional clarity throughout the field of view together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting.

    The 30mm mono-tube chassis, machined from high grade aluminium, comes with two turret styles; low profile 1/4 MOA turrets provide smooth and precise adjustments, while still maintaining a compact and efficient design, 1/10 MRAD exposed and locking turrets give ease of access and offer a more tactical design. Side Focus models feature a wheel that allows for parallax correction to infinity.

    The all new First Focal Plane (FFP) models ensure your holdover aim points stay true no matter what magnification you are using. When the magnification is increased, the reticle increases in size along with the image you are looking at. Using a combination of FFP optics, mil spaced reticles and 110 MRAD turrets Hawke have made adjustment effortless on all magnifications.

    The LR Dot reticle has been designed around the ballistic pro le of common hunting cartridges. The TMX reticle uses true mil spacing at 20×, with half mil indicators and multiple aim points. The FFP Mil Ext. reticle is a mil spaced reticle with half mil spaced markings extending out to 10 mil of holdover. The Tactical Dot features a quick acquisition circle and central aim point.

    We vigorously stress-test every Frontier scope for both shock and moisture ingress ensuring every one will stand up to extreme conditions.

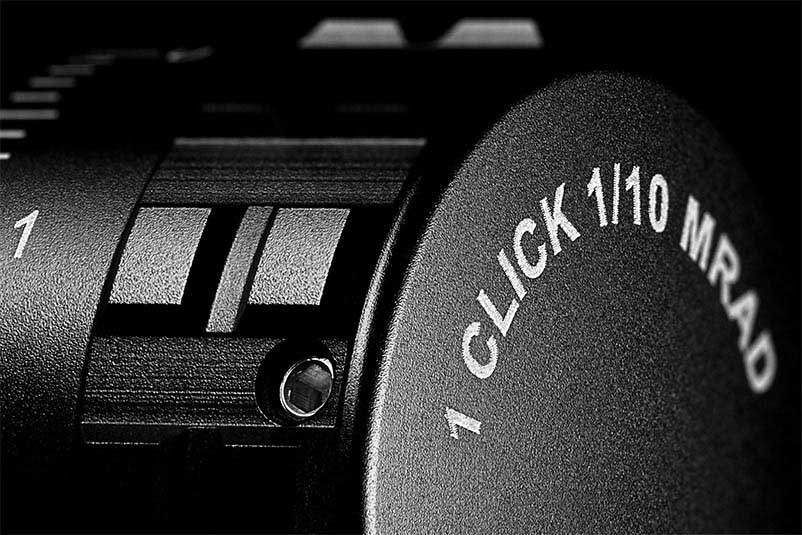

TACTICAL 110 MRAD LOCKING TURRETS

Push-pull exposed, locking and resettable turrets with positive 1/10 MRAD click values and 6 MRAD adjustment per revolution.

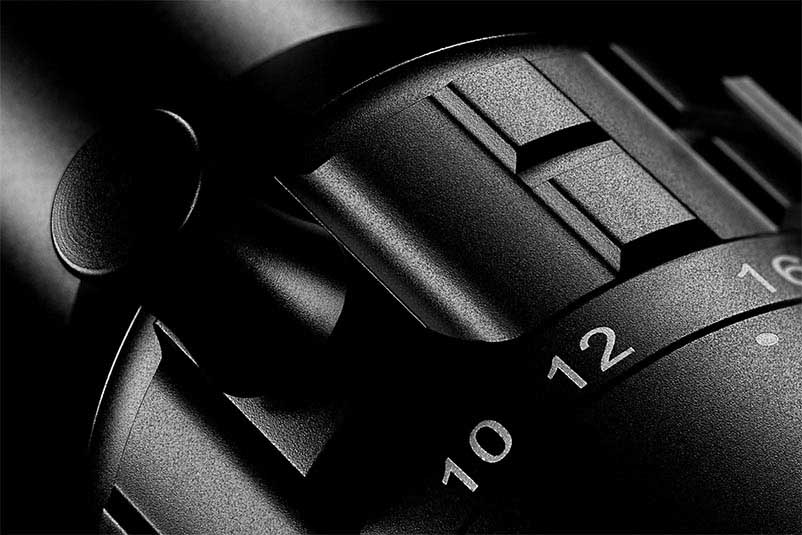

FIRST FOCAL PLANE ZOOM LEVER

FFP models are fitted with a removable zoom lever for fast and precise adjustment of your riflescope magnification with minimum effort.

LOW-PROFILE 1⁄4 MOA FINGERTIP TURRETS

Highly accurate matched turrets feature a value of 1⁄4 MOA per click with a total 15 MOA for each revolution. Once zeroed the turrets can be reset.

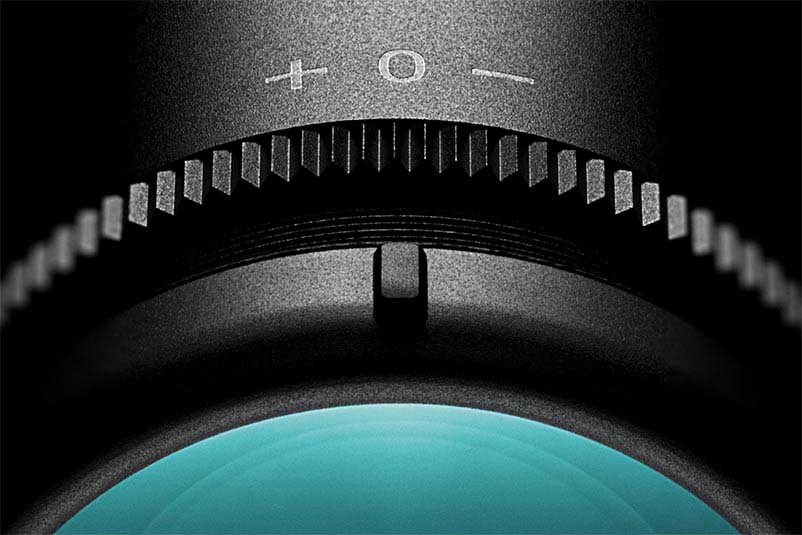

FAST FOCUS OCULAR ADJUSTMENT

The fast focus ocular is covered with a rubber safety ring and allows you to achieve and maintain perfect reticle sharpness with ease.

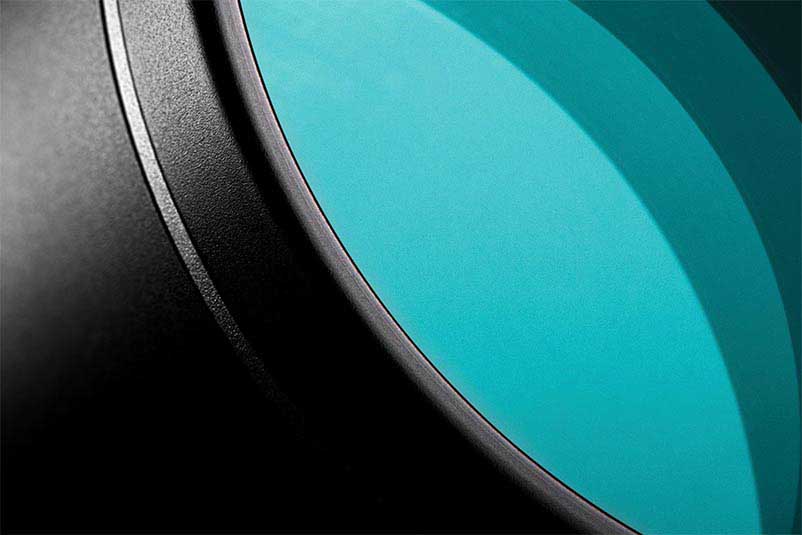

Fully Multi-coated Lenses:

Throughout the optical system, all glass surfaces have received 21 layers of advanced coatings for high light transmission in all conditions.

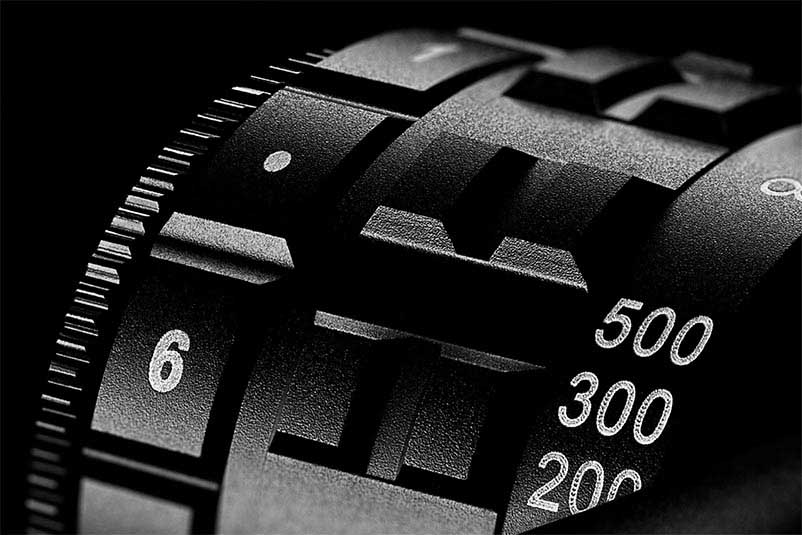

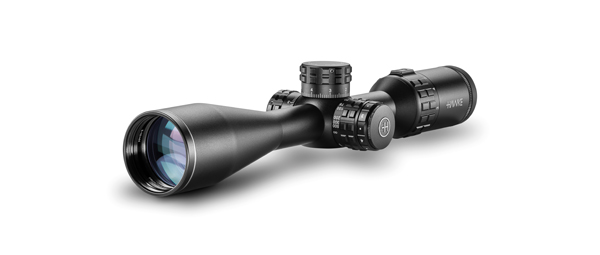

SIDE FOCUS AND ILLUMINATION RHEOSTAT

Precise Side Focus adjustment to infinity ensures accuracy is always maintained. The rheostat operates brightness settings for the red reticle illumination.

  • Lens
  • Rheostat

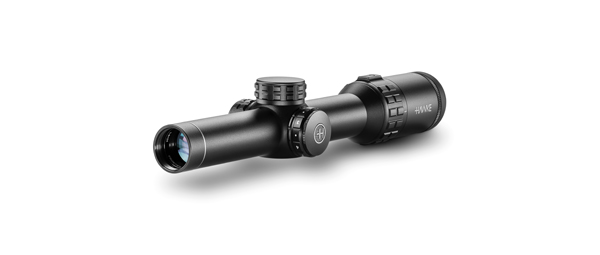

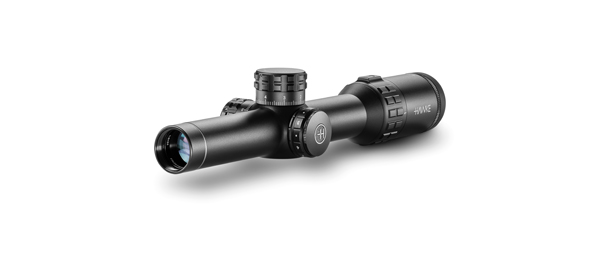

Frontier 30
