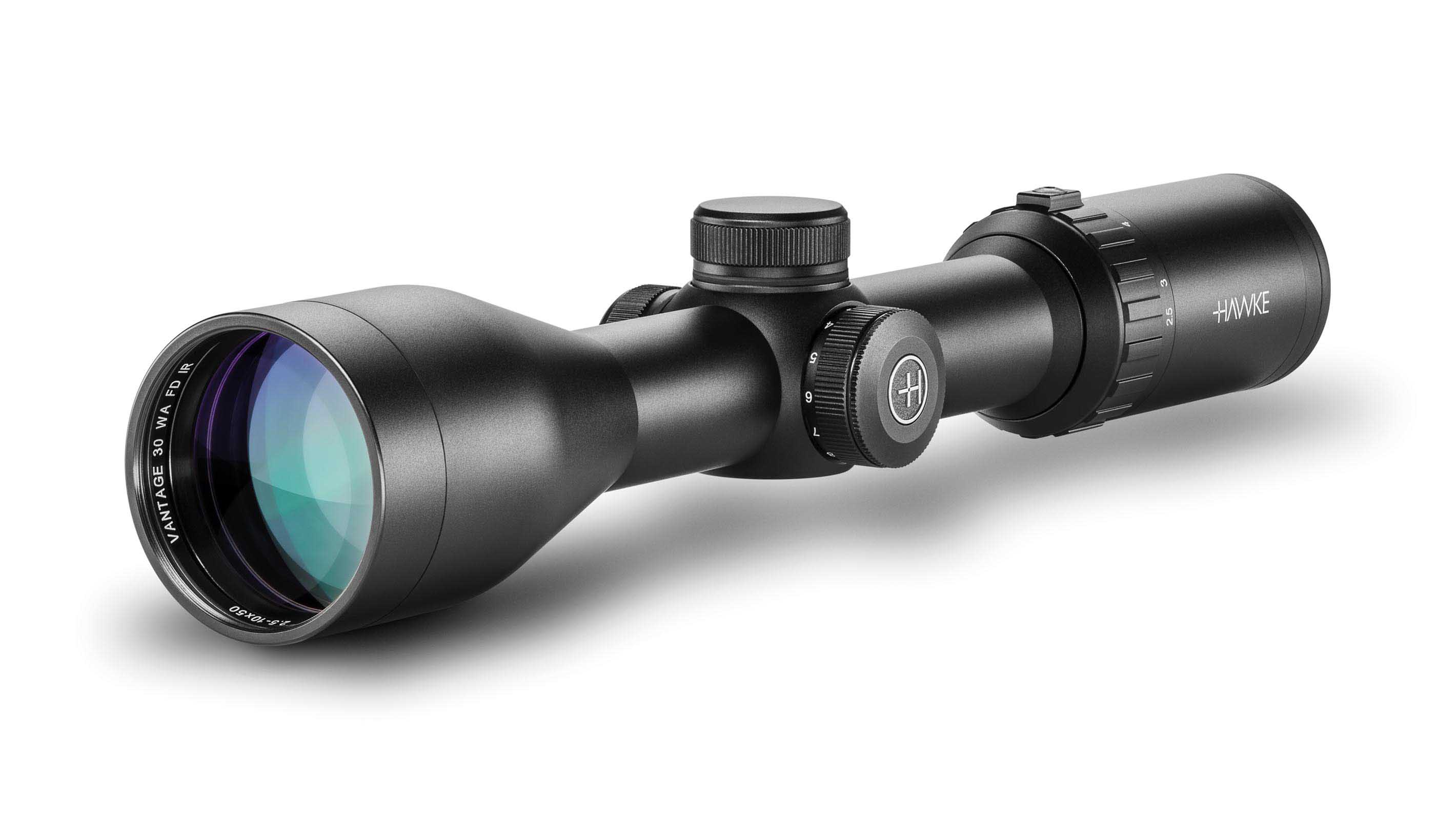

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
The unprecedented Fiber Dot reticles give an intensely bright red illuminated center dot that really can be called daylight bright.
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Fibre Optic Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- Supplied with removable zoom lever
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
Product Type
Riflescope
Product Range
Vantage 30 WA FD IR
Optical System
System H2
Scope Tube
30mm
Magnification
2.5 - 10x
Objective Lens
50mm
Reticle
L4A FD
Illumination
11 Levels - Red
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Lens Coating
Fully Multi-Coated - 11 Layers
Field of View (ft@100yds)
50.4 - 12.6
Field of View (m@100m)
16.8 - 4.2
Field of View (°)
9.6 - 2.4
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
100
PX/Focus (m)
91
Exit Pupil (mm)
20 - 5
Exit Pupil (in)
0.79 - 0.2
Turret Type
Capped
Turret Caps
YES
Click Value
1/4 MOA
Elevation Turret Clicks (max)
100 MOA
Windage Turret Clicks (max)
100 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Length (in)
12.6
Length (mm)
321
Weight (oz)
20.5
Weight (g)
580
Reticle Group
L4A FD
