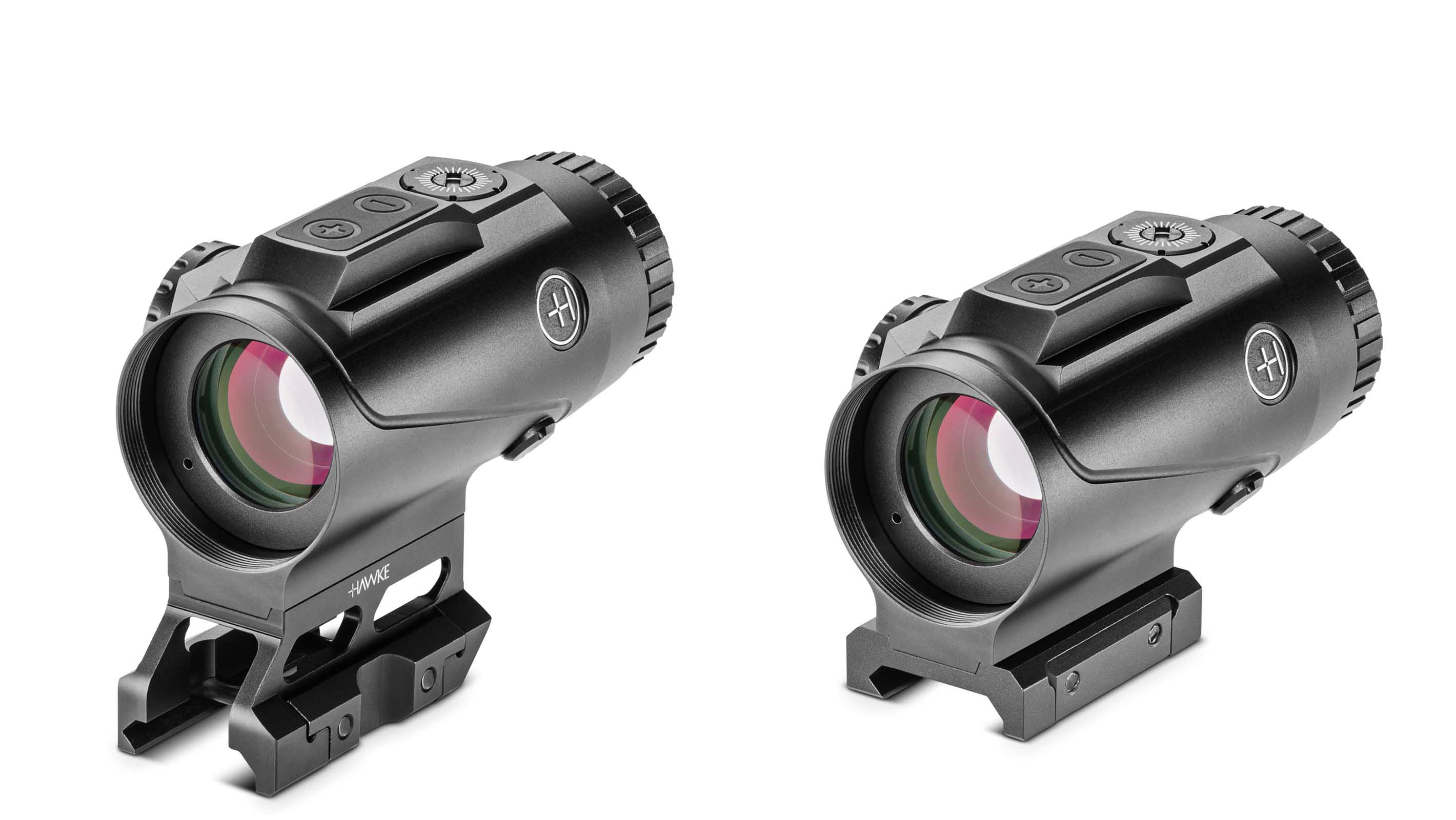

Prism Sight 4x24 5.56 BDC Dot

Model: 12054
Barcode/EAN: 5054492120543


No stock, delayed despatch

No stock, delayed despatch


Easy to use. Hard to Beat.

Introducing the all-new Hawke Prism Sights, designed for AR and AK pattern rifles. The 4x24 models feature a Bullet Drop Compensating (BDC) reticle designed to accommodate a variety of ammunition including .223/5.56, .308WIN, .300BLK, and 7.62x39.

  • Supplied with Low-profile mount and Lower 1⁄3 Co-Witness Mount
  • 10 stage digital brightness control
  • Exposed 1 MOA click turrets
  • High Quality Aluminum Construction
  • Fixed parallax at 100 yards
  • Auto shut off and shake awake
  • Ideal for use on ARs and hunting rifles
  • Compatible With Micro T-2 Footprint Mounts

Nitrogen purged. Shockproof. Waterproof. Fog proof. All caliber rated

Hawke Two Year Warranty.

  • More Reticle Information
Line Drawing
Product Type  Prism Sight
Product Range  Prism Sight
Magnification  4x
Objective Lens  24mm
Reticle  5.56 BDC Dot
Illumination  10 Stage Digital Brightness (8 Day / 2 Night) - Red
Lens Coating  Multi-Coated - 25 Layers
Mount  Weaver Rail (Lower 1/3 Co-Witness and Low Profile)
Eye Relief (in)  2.8
Eye Relief (mm)  72
PX/Focus (yds)  100
PX/Focus (m)  91
Click Value  1 MOA
Length (in)  3.3
Length (mm)  85
Height (in)  1.9
Height (mm)  48
Width (in)  1.9
Width (mm)  47
Weight (oz)  7.8
Weight (g)  222
Length (with Low Base) (in)  3.3
Length (with Low Base) (mm)  85
Height (with Low Base) (mm)  57
Height (with Low Base) (in)  2.2
Width (with Low Base) (in)  1.9
Width (with Low Base) (mm)  47
Weight (with Low Base) (oz)  8.6
Weight (with Low Base) (g)  245
Length (with High Base) (in)  3.7
Length (with High Base) (mm)  94
Height (with High Base) (in)  2.8
Height (with High Base) (mm)  70
Width (with High Base) (in)  1.9
Width (with High Base) (mm)  47
Weight (with High Base) (oz)  8.9
Weight (with High Base) (g)  251
Mounted Height (with High Base) (in)  1.6
Mounted Height (with High Base) (mm)  40.4
  • Box
  • Instruction Manual
  • Lens Cloth
  • High Mount
  • Low Mount
  • Rubber Protective Lens Covers
  • Honeycomb Sunshade
  • CR2032 Battery
  • Torx Key
